Small FinAlu® hinges

Rectangular hinges

Small FinAlu® hinges

Small hinges in aluminium profile with a small pin diameter.
This nice design can be used in many applications: (medical, electronic enclosures, food equipment, transportation...).
These drilled hinges have same features as FinAlu® continuous hinges.
They have the similar dimensions to hinges used in the aircraft industry.

Quotation request

Part number

	Load	Stock

Material

Finish

Pin material

Weight (g)

Sheet	cao	Load	Stock

72-1-4298

6082 T5 alu

clear anodised

38 mm

31.75 mm

1.3 mm

2.2

2.29 mm

20 mm

22 mm

4.3 mm

stainless steel

7 g

72-1-4299

6082 T5 alu

clear anodised

50 mm

44.45 mm

1.3 mm

2.2

2.29 mm

30 mm

34 mm

4.3 mm

stainless steel

10 g

72-1-4300

6082 T5 alu

clear anodised

63.5 mm

1.3 mm

2.2

2.29 mm

40 mm

6 mm

stainless steel

18 g

72-1-4358

6082 T5 alu

blue anodised

63.5 mm

1.3 mm

2.2

2.29 mm

40 mm

6 mm

stainless steel

15 g

72-1-4353

6082 T5 alu

gold anodised

38 mm

31.75 mm

1.3 mm

2.2

2.29 mm

20 mm

22 mm

4.3 mm

stainless steel

5 g

72-1-4352

6082 T5 alu

bronze anodised

38 mm

31.75 mm

1.3 mm

2.2

2.29 mm

20 mm

22 mm

4.3 mm

stainless steel

5 g

72-1-4356

6082 T5 alu

bronze anodised

50 mm

44.45 mm

1.3 mm

2.2

2.29 mm

30 mm

34 mm

4.3 mm

stainless steel

9 g

72-1-4350

6082 T5 alu

blue anodised

38 mm

31.75 mm

1.3 mm

2.2

2.29 mm

20 mm

22 mm

4.3 mm

stainless steel

5 g

72-1-4351

6082 T5 alu

red anodised

38 mm

31.75 mm

1.3 mm

2.2

2.29 mm

20 mm

22 mm

4.3 mm

stainless steel

5 g

72-1-4354

6082 T5 alu

blue anodised

50 mm

44.45 mm

1.3 mm

2.2

2.29 mm

30 mm

34 mm

4.3 mm

stainless steel

9 g

72-1-4360

6082 T5 alu

bronze anodised

63.5 mm

1.3 mm

2.2

2.29 mm

40 mm

6 mm

stainless steel

15 g

72-1-4361

6082 T5 alu

gold anodised

63.5 mm

1.3 mm

2.2

2.29 mm

40 mm

6 mm

stainless steel

15 g

72-1-4359

6082 T5 alu

red anodised

63.5 mm

1.3 mm

2.2

2.29 mm

40 mm

6 mm

stainless steel

15 g

72-1-4355

6082 T5 alu

red anodised

50 mm

44.45 mm

1.3 mm

2.2

2.29 mm

30 mm

34 mm

4.3 mm

stainless steel

9 g

72-1-4357

6082 T5 alu

gold anodised

50 mm

44.45 mm

1.3 mm

2.2

2.29 mm

30 mm

34 mm

4.3 mm

stainless steel

9 g

72-1-4420

6082 T5 alu

clear anodised

40 mm

38.1 mm

1.3 mm

2.2

2.29 mm

24 mm

4.3 mm

stainless steel

10 g

NS Non-stock items available to order

Scroll horizontally

	Axial load	Radial load	Load with 90° angle
Tensile tests
References	Maximum load (N)	Maximum load (N)	Maximum load (N)
72-1-4298	2650	3270	1380
72-1-4299	5390	3590	1550
72-1-4300	5950	4360	2700
72-1-4358	5950	4360	2700
72-1-4353	2650	3270	1380
72-1-4352	2650	3270	1380
72-1-4356	5390	3590	1550
72-1-4350	2650	3270	1380
72-1-4351	2650	3270	1380
72-1-4354	5390	3590	1550
72-1-4360	5950	4360	2700
72-1-4361	5950	4360	2700
72-1-4359	5950	4360	2700
72-1-4355	5390	3590	1550
72-1-4357	5390	3590	1550
72-1-4420	2690	2380	1770

The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.

Test conditions and protocols

Quantity	Unit price
221	21.4 € excl. taxes

Quantity	Unit price
285	24.06 € excl. taxes

Quantity	Unit price
183	25.68 € excl. taxes

Contact and quote request

Contact and quote request

PINET Catalogue

Small FinAlu® hinges

Small FinAlu® hinges

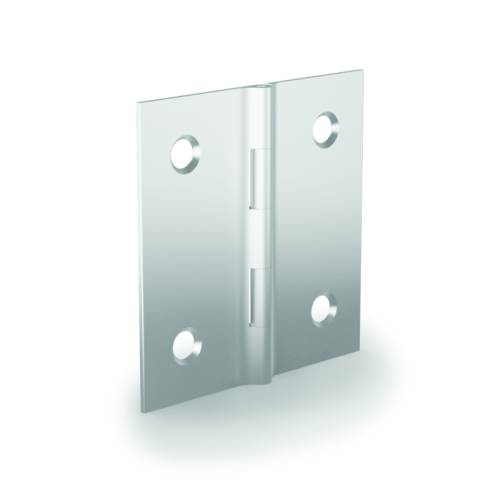

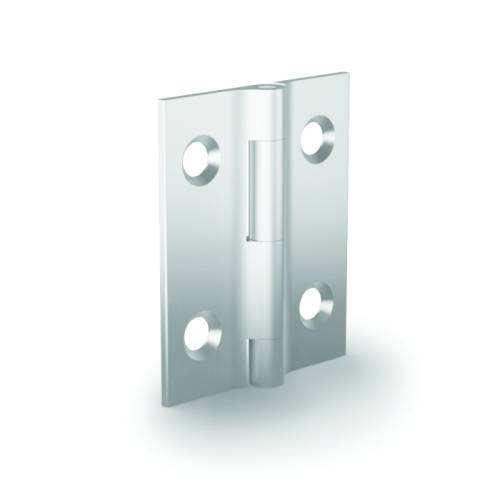

Part number : 72-1-4298

Small FinAlu® hinges

Part number : 72-1-4299

Small FinAlu® hinges

Part number : 72-1-4300

Small FinAlu® hinges

Part number : 72-1-4358

Small FinAlu® hinges

Part number : 72-1-4353

Small FinAlu® hinges

Part number : 72-1-4352

Small FinAlu® hinges

Part number : 72-1-4356

Small FinAlu® hinges

Part number : 72-1-4350

Small FinAlu® hinges

Part number : 72-1-4351

Small FinAlu® hinges

Part number : 72-1-4354

Small FinAlu® hinges

Part number : 72-1-4360

Small FinAlu® hinges

Part number : 72-1-4361

Small FinAlu® hinges

Part number : 72-1-4359

Small FinAlu® hinges

Part number : 72-1-4355

Small FinAlu® hinges

Part number : 72-1-4357

Small FinAlu® hinges

Part number : 72-1-4420
