Concealed hinges for nested doors only

Concealed hinges

Concealed hinge with friction - 90° opening
Picto 1 Picto 2 Picto 3

Concealed hinge with friction - 90° opening

Initial torque (0.7 N.m) may vary from -20% to +40%.
For indoor use only.
Can be used both for horizontal and vertical applications.
Cycle life: 20,000 cycles.
Produced mainly in stainless steel, for a complete description of the materials contact us.

See
Concealed hinges with spring - 95° opening Nouveautés
Picto 1 Picto 2 Picto 3 Picto 4 Picto 5

Concealed hinges with spring - 95° opening

Concealed hinges with 2 positions:
- Closing position: door remains open with an angle of 10°.
- Opening position: door opens up to 95°.
Closing of door due to spring action and door remains slightly opened.
Applications for parcel box:
- Door automatically opens after code entry.
- Door doesn't remain in opened position.

See
Concealed hinges without spring - 95° opening Nouveautés
Picto 1 Picto 2 Picto 3 Picto 4

Concealed hinges without spring - 95° opening

See
Concealed hinge - 180° opening
Picto 1 Picto 2 Picto 3

Concealed hinge - 180° opening

See
Multi link concealed hinges - 180° opening
Picto 1 Picto 2

Multi link concealed hinges - 180° opening

Links and pins: 303 and 304 stainless steel or steel.

See
Concealed hinge with friction - 180° opening Nouveautés
Picto 1 Picto 2 Picto 3

Concealed hinge with friction - 180° opening

180° opening angle.
Free stop for safety. Maximum friction torque of 5 N.m for one hinge (when lid is closed).
Torque decreases as the opening angle increases, making easier to open the lid.

See
Concealed hinge with removable pin - 180° opening
Picto 1 Picto 2 Picto 3 Picto 4

Concealed hinge with removable pin - 180° opening

Patented concealed hinge for metallic enclosures with a 180° opening.
Removable pin makes disassembly of doors easy.
Door thickness max: 1 mm.

See

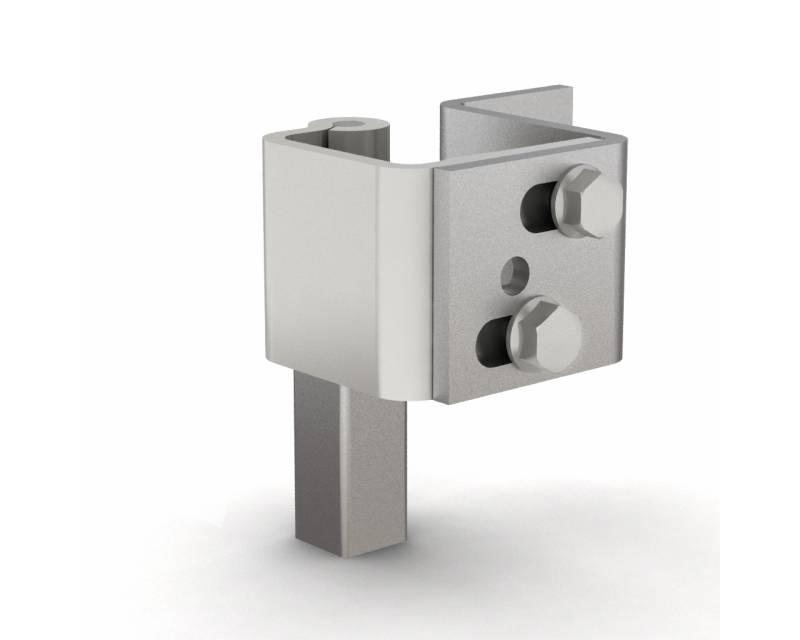

Concealed heavy duty hinge for flush doors - 90° opening
Picto 1 Picto 2 Picto 3 Picto 4 Picto 5

Concealed heavy duty hinge for flush doors - 90° opening

Concealed hinge for LH or RH application. The 2 main hinge parts have a central guide to prevent door from sagging during adjustement.

See
Concealed heavy duty hinge for flush doors - 90° opening
Picto 1 Picto 2 Picto 3 Picto 4 Picto 5

Concealed heavy duty hinge for flush doors - 90° opening

Concealed hinge for LH or RH application. The 2 main hinge parts have a central guide to prevent door from sagging during adjustement.

See
Concealed heavy duty hinge for flush doors - 90° opening
Picto 1 Picto 2 Picto 3 Picto 4 Picto 5

Concealed heavy duty hinge for flush doors - 90° opening

Concealed hinge for LH or RH application. The 2 main hinge parts have a central guide to prevent door from sagging during adjustement.

See

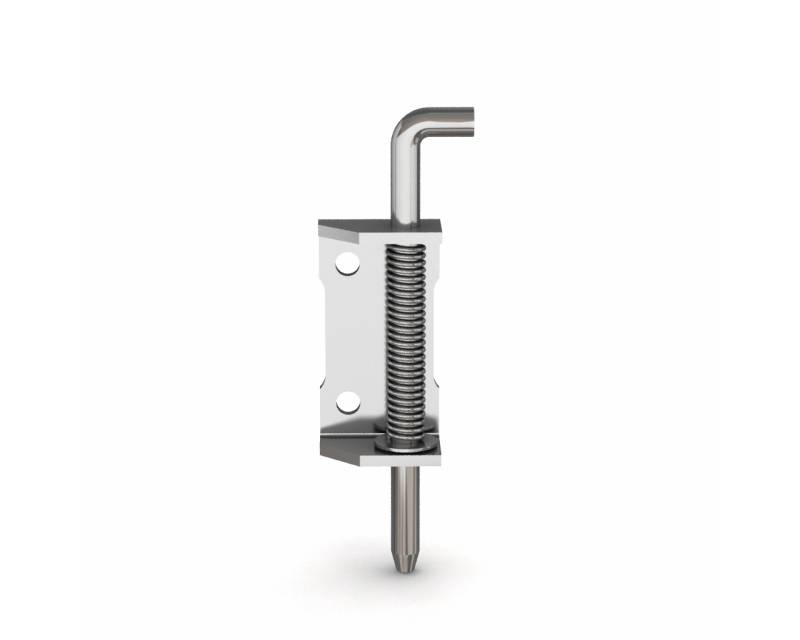

Concealed weld-on springloaded pin hinge
Picto 1 Picto 2 Picto 3 Picto 4

Concealed weld-on springloaded pin hinge

See
 Concealed springloaded pin hinges A
Picto 1 Picto 2 Picto 3 Picto 4

Concealed springloaded pin hinges A

Stainless steel spring.
Hinges in raw steel and zinc plated steel with a zinc plated pin.
304 stainless steel pin for hinges in stainless steel.
Circlip in 1.4122 stainless steel.

See
Concealed springloaded pin hinges B
Picto 1 Picto 2 Picto 3 Picto 4

Concealed springloaded pin hinges B

Stainless steel spring.
Zinc plated pin for hinges in raw steel and zinc plated steel.
304 stainless steel pin for hinges in stainless steel.
Circlip in 1.4122 stainless steel.

See
Concealed hinge with friction - 130° opening Nouveautés
Picto 1 Picto 2 Picto 3

Concealed hinge with friction - 130° opening

Initial torque (0.7 N.m) may vary from -20% to +40%.
For indoor use only.
Can be used both for horizontal and vertical applications.
Cycle life: 20,000 cycles.
Pin: 303 stainless steel
Produced mainly in stainless steel, for a complete description of the materials contact us.

See
3-way adjustable concealed hinge Nouveautés
Picto 1 Picto 2 Picto 3

3-way adjustable concealed hinge

3-way adjustment function allows vertical, horizontal and depth adjustment after hinge installation.
Can be split into two parts (one for the frame and one for the door) making installation easy.
Horizontal adjustment: ±1.5 mm
Vertical adjustment: ±1.5 mm
Depth adjustment: ±1 mm
Door thickness: min. 23 mm
4 screws included.

See
