Concealed hinges for nested doors only
For indoor use only.
Can be used both for horizontal and vertical applications.
Cycle life: 20,000 cycles.
Produced mainly in stainless steel, for a complete description of the materials contact us.
Concealed hinge with friction - 90° opening
Initial torque (0.7 N.m) may vary from -20% to +40%.For indoor use only.
Can be used both for horizontal and vertical applications.
Cycle life: 20,000 cycles.
Produced mainly in stainless steel, for a complete description of the materials contact us.

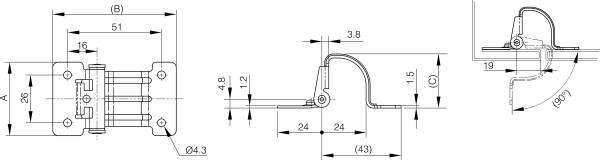

| Part number |
|
Material | Finish | Torque | A | B | C | Weight (g) |
|
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70-7-3623 |
|
304 stainless steel | polished | 0.7 N.m N.m | 40 mm | 67 mm | 29.5 mm | 51 g |
|
ABC
Concealed hinge with friction - 90° opening
Part number : 70-7-3623
94 In stock
| Quantity | Unit price |
| >= 1 | 30.44 € excl. taxes |
