Friction hinges
- Provide torque stability in both directions.
- Torque per piece (tilting): 7 N.m.
- Torque per piece (swiveling) 3 N.m.
- Suitable for monitor screens.
- Rotation upon axis X is free but can be blocked from 0° to 120° with a dditional pin.
-Rotation upon axis Z is free but can be blocked at 30° or 90° with additional pins (various holes in the fixing plate).
-Electric cables can go through a hole in the middle of the flixing plate.
Produced mainly in stainless steel, for a complete description of the materials contact us.

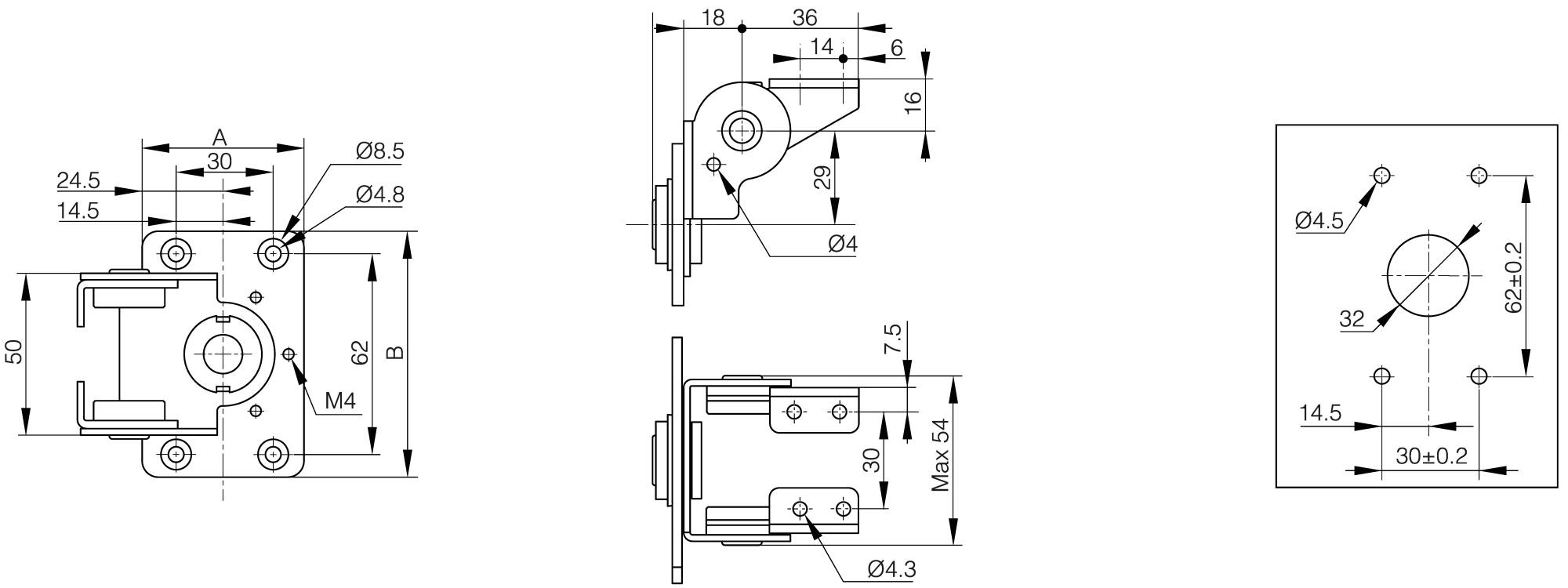

Dual axis torque hinge - 50 x 76 mm
- Dual axis: free stop at any angle in tilt & swivel.- Provide torque stability in both directions.
- Torque per piece (tilting): 7 N.m.
- Torque per piece (swiveling) 3 N.m.
- Suitable for monitor screens.
- Rotation upon axis X is free but can be blocked from 0° to 120° with a dditional pin.
-Rotation upon axis Z is free but can be blocked at 30° or 90° with additional pins (various holes in the fixing plate).
-Electric cables can go through a hole in the middle of the flixing plate.
Produced mainly in stainless steel, for a complete description of the materials contact us.
