Small differential friction pin hinges B
Picto 2 Picto 1 Picto 3
Friction hinges

Small differential friction pin hinges B

Small-sized differential friction pin hinges to hold a door or lid in position.
Cycle life: 30 000 cycles.
360° rotation possible.

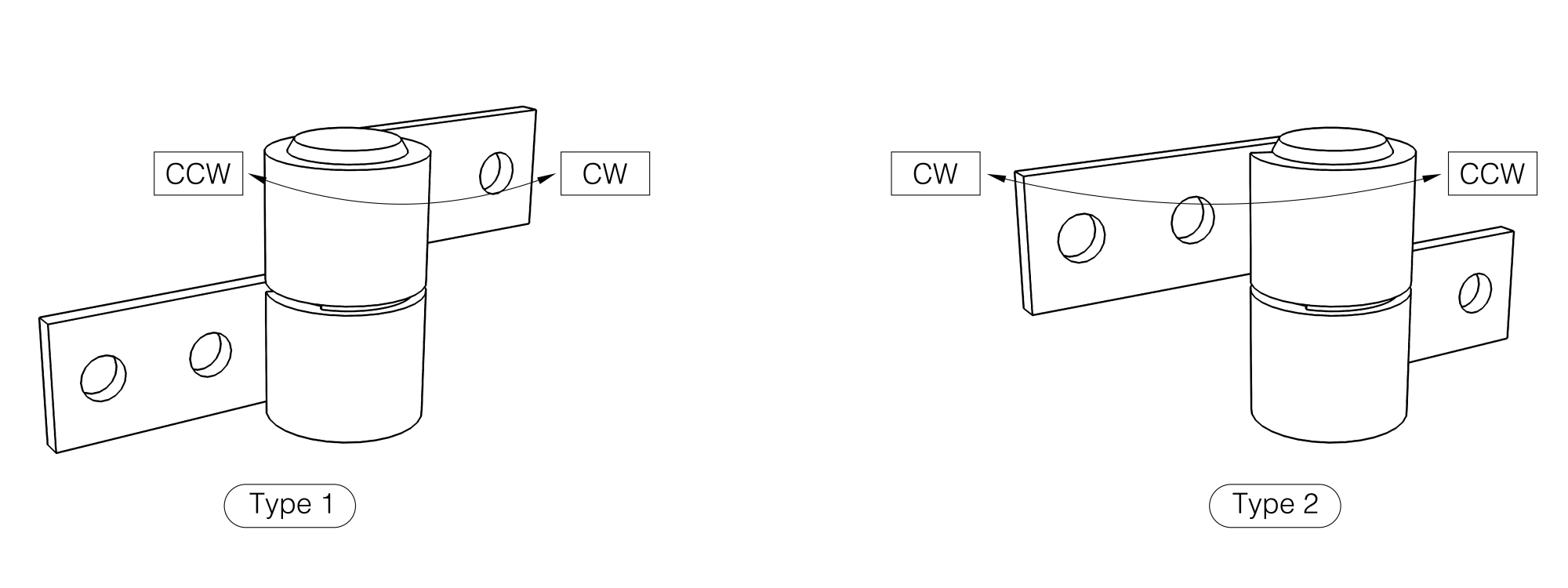

The highest friction torque is obtained during CCW rotation.
Operating temperature: -20°C / +70°C.
zoom
3D View
CAO
QR Code
Quotation request
Part number
Load Stock
Material Finish Torque A B C D Note Weight (g)
Sheet cao Load Stock Buy
Scroll horizontally
Kleine Differential-Friktions-bolzen-scharniere B
Kleine Differential-Friktions-bolzen-scharniere B
Axial load Radial load Load with 90° angle
Tensile tests Maximum load (N) Maximum load (N) Maximum load (N)
References Maximum load (N) Maximum load (N) Maximum load (N)
59-7-5011 1480 2460 2400
59-7-5008 1480 2460 2400
59-7-5012 1480 2460 2400
59-7-5009 1480 2460 2400
59-7-5013 1480 2460 2400
59-7-5010 1480 2460 2400
59-7-5014 1480 2460 2400
Test conditions and protocols
QR CODE
59-7-5007 59-7-5011 59-7-5008 59-7-5012 59-7-5009 59-7-5013 59-7-5010 59-7-5014
