Clean room lift-off hinges

Rectangular hinges

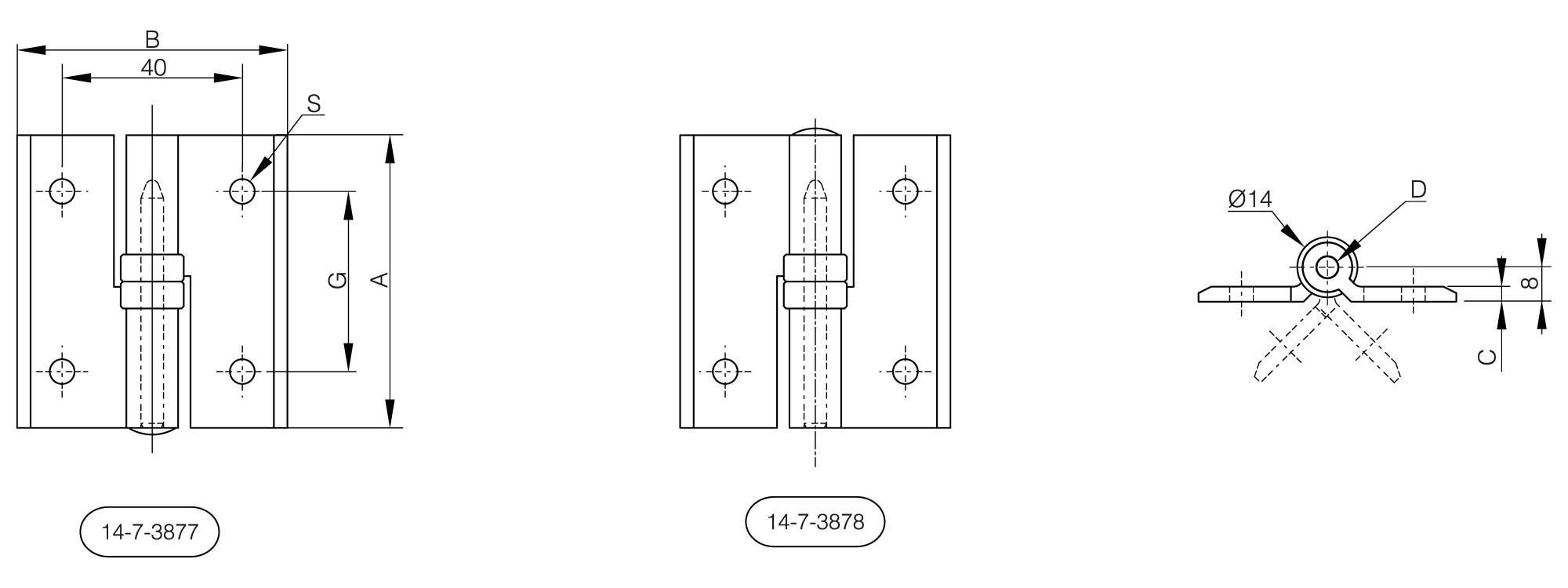

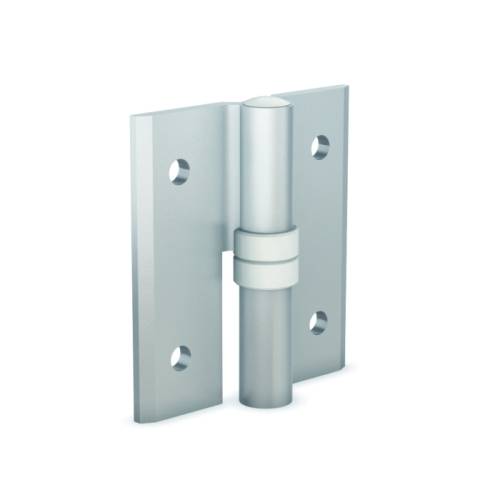

Clean room lift-off hinges - 65 x 60 mm

No metal-to-metal contact. Polyacetal bushings minimize particles.
Door size: max. W600 x L800.
Door weight: max. 8 kg/pair.
303 stainless steel pin.

Quotation request

Part number

	Load	Stock

Material

Finish

Note

Weight (g)

Sheet	cao	Load	Stock

14-7-3877

aluminium

anodised

65 mm

60 mm

3.5 mm

40 mm

5.5 mm

type 1

49 g

14-7-3878

aluminium

anodised

65 mm

60 mm

3.5 mm

40 mm

5.5 mm

type 2

49 g

Scroll horizontally

Aluminium-Fitschbänder für Clean Room Anwendungen 65 x 60 mm

	Axial load	Radial load	Load with 90° angle
Tensile tests
References	Maximum load (N)	Maximum load (N)	Maximum load (N)
14-7-3878	7400	5380	3000

The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.

Test conditions and protocols
