Rectangular hinges
Door size: max. W600 x L800.
Door weight: max. 13 kg/pair.
303 stainless steel pin.

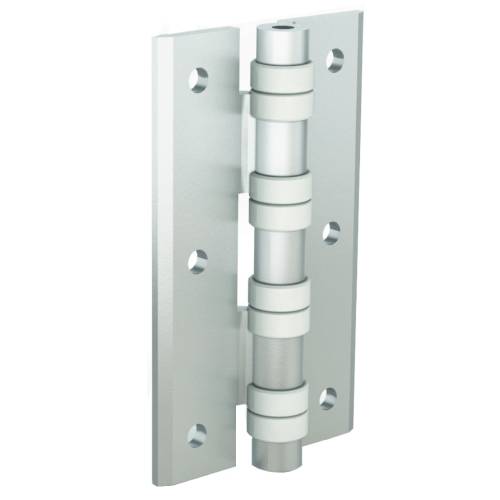

Clean room hinge 100 x 60 mm
No metal-to-metal contact. Polyacetal bushings minimize particles.Door size: max. W600 x L800.
Door weight: max. 13 kg/pair.
303 stainless steel pin.
Quotation request
1 reference(s) available
| reference | Material | Finish | A | B | C | S | D | E | Weight (g) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 72-7-4253 | aluminium | anodised | 100 mm | 60 mm | 3.5 mm | 5.5 mm | 5 | 8 mm | 78 g | ||||||||||||||||||||
Price quotation and order, to regiter or login click on Log in |
|||||||||||||||||||||||||||||

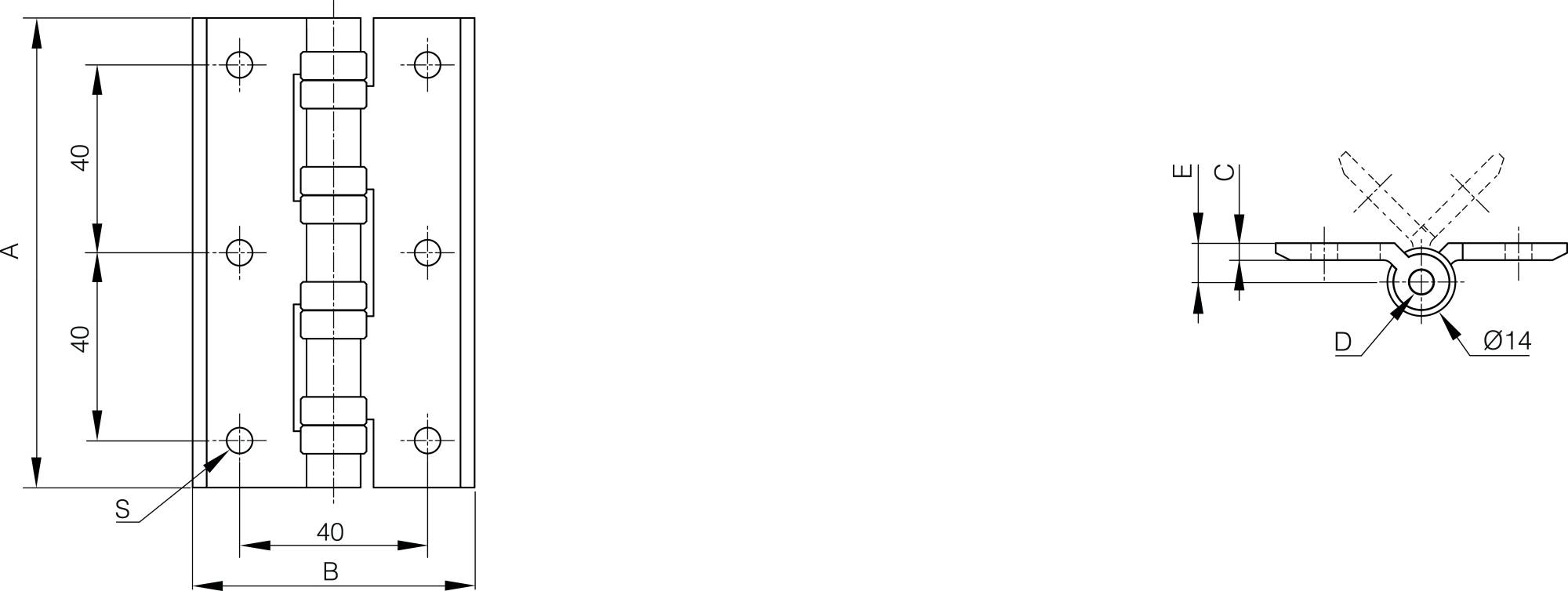

A (length)B (width)CSD (pin diameter)E
