Heavy duty hinges with rolled knuckles

Heavy duty hinges

The range of heavy duty hinges with rolled knuckles consists of heavy duty 115 x 70mm, 115 x 125mm, 115 x 155mm - 5 hinges, heavy duty 115 x 125mm, 115 x 155mm, 115 x 215mm - 3 hinges, heavy duty 66 x 230mm, 66 x 215mm, 65 x 230mm, 130 x 95mm, for heavy duty applications, with double washer, with polymer bearing, with bronze bearing, with reinforced polymer bearing, hinge. They are tested according to EN1935:2002. We offer several materials: stainless steel 304, steel, stainless steel 316.

Heavy duty hinge - 66 x 230 mm
Picto 1 Picto 2 Picto 3

Heavy duty hinge - 66 x 230 mm

Stainless steel riveted pin.

See
Heavy duty hinge - 66 x 215 mm
Picto 1 Picto 2 Picto 3

Heavy duty hinge - 66 x 215 mm

Stainless steel riveted pin.

See
Heavy duty hinge 115 x 125 mm - 5 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 125 mm - 5 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinge 115 x 155 mm - 5 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 155 mm - 5 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinge 115 x 70 mm - 5 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 70 mm - 5 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinge 115 x 125 mm - 3 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 125 mm - 3 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinge 115 x 155 mm - 3 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 155 mm - 3 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinge 115 x 215 mm - 3 knuckles Nouveautés
Picto 1 Picto 2 Picto 3

Heavy duty hinge 115 x 215 mm - 3 knuckles

304 stainless steel riveted pin.

See
Heavy duty hinges - 65 x 230 mm
Picto 1 Picto 2 Picto 3

Heavy duty hinges - 65 x 230 mm

Riveted pin.

See
Heavy duty hinge - 130 x 95 mm
Picto 1 Picto 2 Picto 3

Heavy duty hinge - 130 x 95 mm

Stainless steel riveted pin.

See

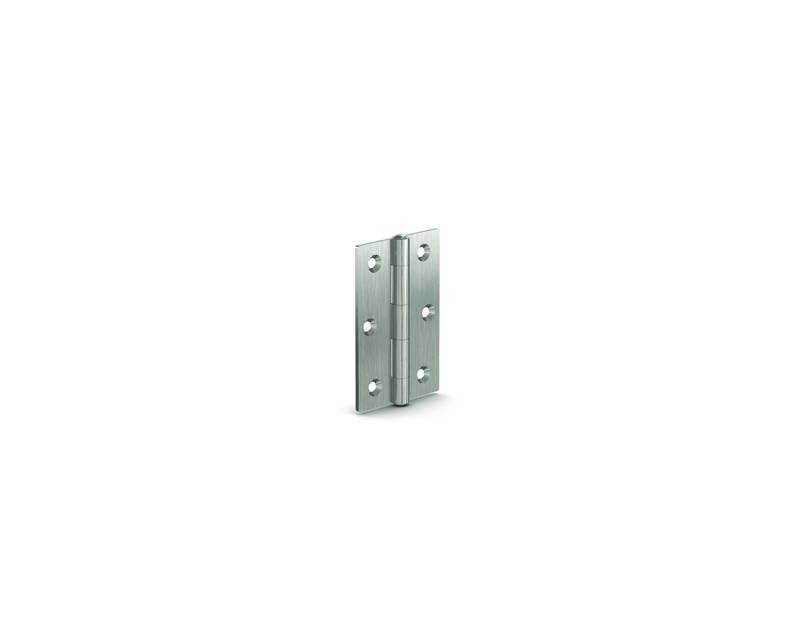

Heavy duty hinge 63.5 x 38 mm Nouveautés
Picto 1 Picto 2

Heavy duty hinge 63.5 x 38 mm

Hinge tested to EN1935: 2002 grades 1-7
Recommended for door weights less than 40 kg, annual usage up to 10,000 cycles.

See
Heavy duty hinge 76 x 50 mm Nouveautés
Picto 1 Picto 2

Heavy duty hinge 76 x 50 mm

Hinge tested to EN1935: 2002 grades 1-7
Recommended for door weights less than 40 kg, annual usage up to 10,000 cycles.

See
Stainless steel dual washer hinge 101.6 x 73 mm Nouveautés
Picto 1 Picto 2

Stainless steel dual washer hinge 101.6 x 73 mm

Hinge tested to EN1935: 2002 grade 10.
Recommended for weights less than 60 kg, annual usage up to 25,000 cycles.

See
Polymer bushing and stainless steel washer hinge 101.6 x 76.2 mm Nouveautés
Picto 1 Picto 2 Picto 3

Polymer bushing and stainless steel washer hinge 101.6 x 76.2 mm

Hinge tested to EN1935: 2002 grades 12-13.
Recommended for door weights less than 120kg, annual usage up to 100,000 cycles.

See
Bronze bushing hinge 101.6 x 76.2 mm Nouveautés
Picto 1 Picto 2

Bronze bushing hinge 101.6 x 76.2 mm

Hinge tested to EN1935: 2002 grade 13.
Recommended for door weights less than 120 kg, annual usage up to 100,000 cycles.
Door thickness: 35 mm to 54 mm

See
Polymer shrouded bushing hinge 101.6 x 76.2 mm Nouveautés
Picto 1 Picto 2

Polymer shrouded bushing hinge 101.6 x 76.2 mm

Hinge tested to EN1935: 2002 grades 13-14.
Recommended for door weights less than 160 kg, annual usage up to 200,000 cycles.
Door thickness: 44 mm to 54 mm.

See
Polymer shrouded bushing hinge 101.6 x 88.9 mm Nouveautés
Picto 1 Picto 2

Polymer shrouded bushing hinge 101.6 x 88.9 mm

Hinge tested to EN1935: 2002 grades 13-14.
Recommended for door weights less than 160 kg, annual usage up to 200,000 cycles.
Door thickness: 44 mm to 54 mm.
Lift-off hinge version 14-7-3902 and 14-7-3903

See
Polymer bushing lift-off hinge Nouveautés
Picto 1 Picto 2 Picto 3

Polymer bushing lift-off hinge

Hinge tested to EN1935: 2002 grades 13-14.
Recommended for door weights less than 160 kg, annual usage up to 200,000 cycles.
Door thickness: 44 mm to 54 mm.
Standard hinge version 52-7-4132.

See
Stainless steel and bronze shrouded bushing hinge 114.3 x 114.3 mm Nouveautés
Picto 1 Picto 2

Stainless steel and bronze shrouded bushing hinge 114.3 x 114.3 mm

Hinge tested to EN1935: 2002 grades 12-14.
Recommended for door weights less than 160 kg, annual usage up to 150,000 cycles.
For heavy duty applications.
Door thickness: 44 mm to 68 mm.

See
