Polymer hinges with pin
UL 94 V-0 classification: please ask us.
White color: please ask us.

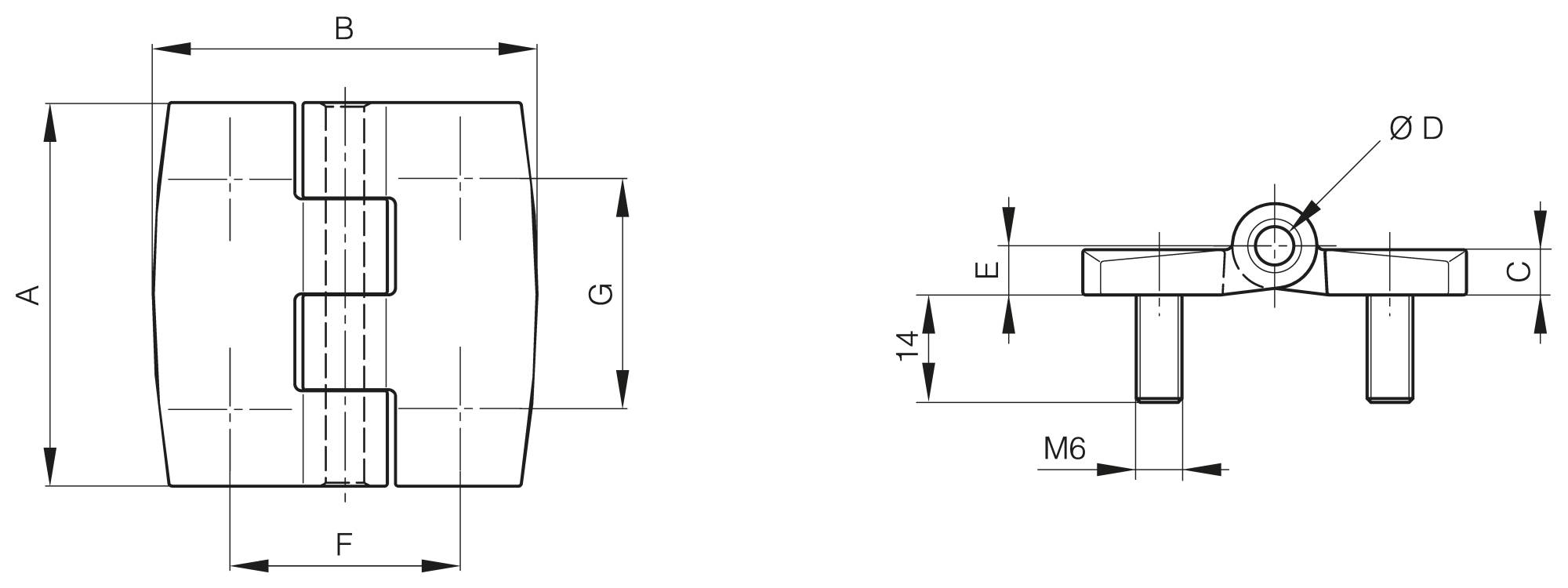

Square design hinges with studs
Hinges are made of 30% GF polyamide, pin is in 316L stainless steel and studs are in 304 stainless steel.UL 94 V-0 classification: please ask us.
White color: please ask us.
54-1-3519 Replaced by 54-1-3568
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 54-1-3568 | 4809 | 5289 | 2174 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
Square design hinges with studs
Part number : 54-1-3568
| Quantity | Unit price |
| 555 | 10.84 € excl. taxes |
