| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 72-1-4396 | 5170 | 4255 | 6707 |
| 72-1-4397 | 5170 | 4255 | 6707 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols

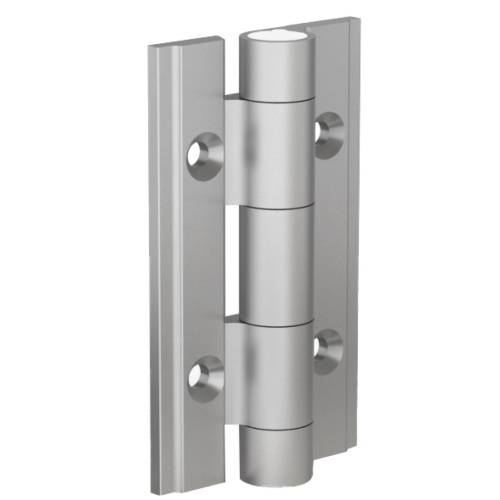

Aluminium profile hinges 60 x 35 mm
Part number : 72-1-4396
| Quantity | Unit price |
| 59 | 15.65 € excl. taxes |
To order, register or login click on
Log inAluminium profile hinges 60 x 35 mm
Part number : 72-1-4397
| Quantity | Unit price |
| 28 | 15.94 € excl. taxes |
To order, register or login click on
Log in
