Other mechanical catches
3 panel thicknesses (E): 0.8 mm, 1.0 mm and 1.2 mm
Cut-out dimensions vary depending on panel thickness.
Internal catch body tolerance of 1.5 mm for ease of alignment.
Push-in force: 2.0 kg.
Pulling force: 2.0 kg.
Body in polyacetal (POM) and strike in polyamide (PA).

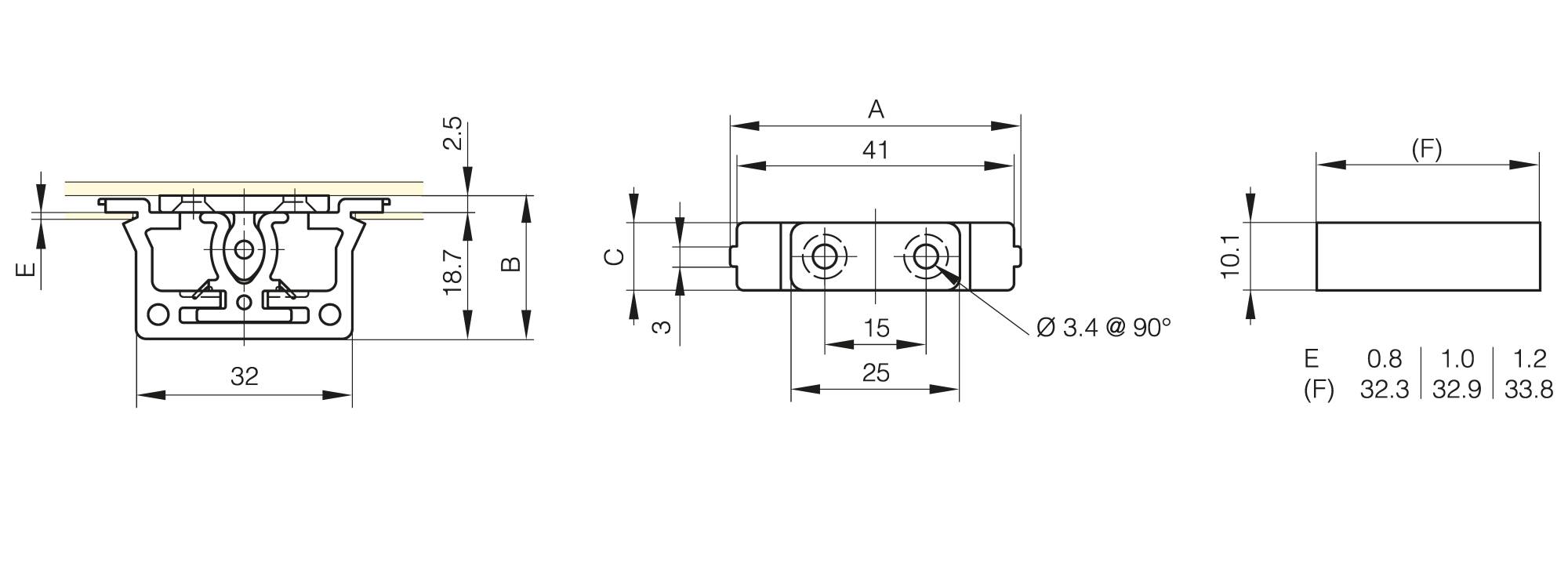

Snap-in knuckle catch in plastic
Snap-in type body for easy installation on sheet metal applications.3 panel thicknesses (E): 0.8 mm, 1.0 mm and 1.2 mm
Cut-out dimensions vary depending on panel thickness.
Internal catch body tolerance of 1.5 mm for ease of alignment.
Push-in force: 2.0 kg.
Pulling force: 2.0 kg.
Body in polyacetal (POM) and strike in polyamide (PA).
