Rectangular hinges
All are fully interchangeable.
Plastic pin with or without end caps.

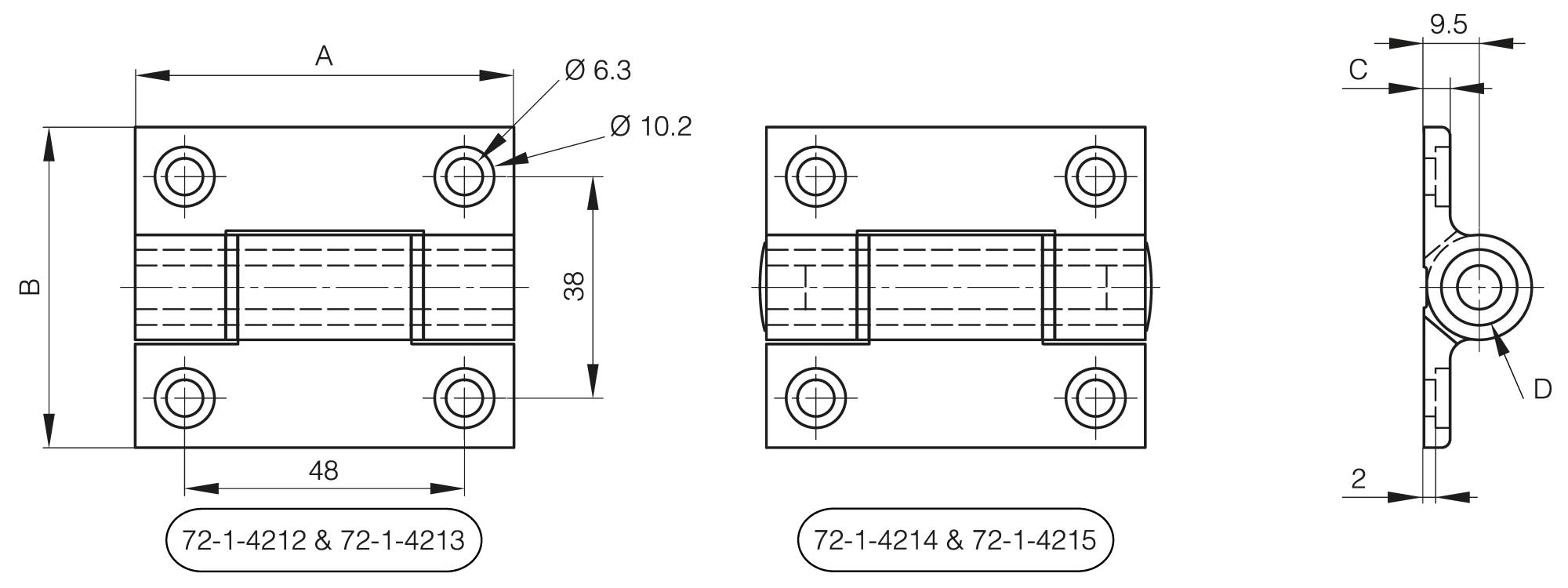

Aluminium profile hinges - diameter 13
This hinge has the same footprint and design as our friction, detent and spring hinges.All are fully interchangeable.
Plastic pin with or without end caps.
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 72-1-4212 | 9800 | 6580 | 5730 |
| 72-1-4213 | 9800 | 6580 | 5730 |
| 72-1-4214 | 9800 | 6580 | 5730 |
| 72-1-4215 | 9800 | 6580 | 5730 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
