Quotation request
2 reference(s) available
| reference | Material | Finish | A | B | C | D | S | E | F | N | Weight (g) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

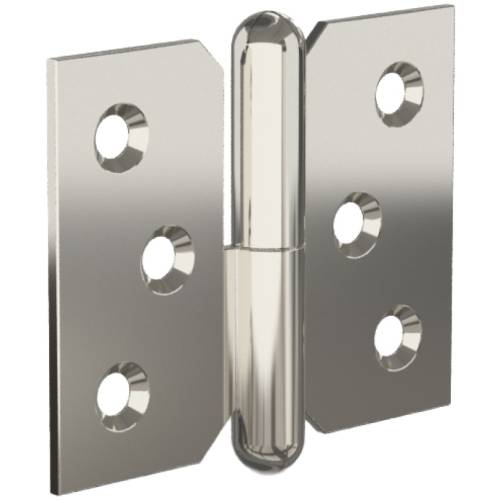

| 14-7-3392 | steel | nickel plated | 40 mm | 50 mm | 1.5 mm | 4 | 3 mm | 7.5 mm | 13 mm | type 1 | 28 g | ||||||||||||||||||||
Price quotation and order, to regiter or login click on Log in |
|||||||||||||||||||||||||||||||

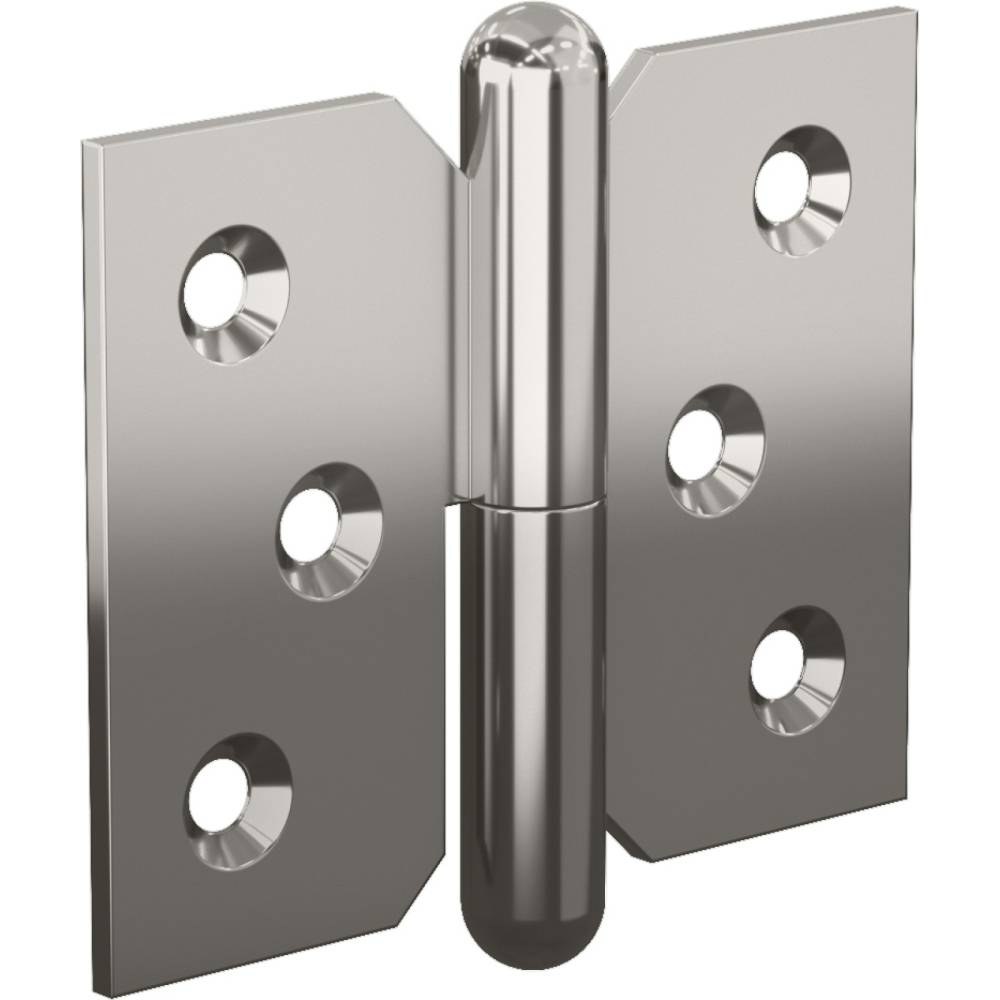

| 14-7-3393 | steel | nickel plated | 40 mm | 50 mm | 1.5 mm | 4 | 3 mm | 7.5 mm | 13 mm | type 2 | 28 g | ||||||||||||||||||||
Price quotation and order, to regiter or login click on Log in |
|||||||||||||||||||||||||||||||

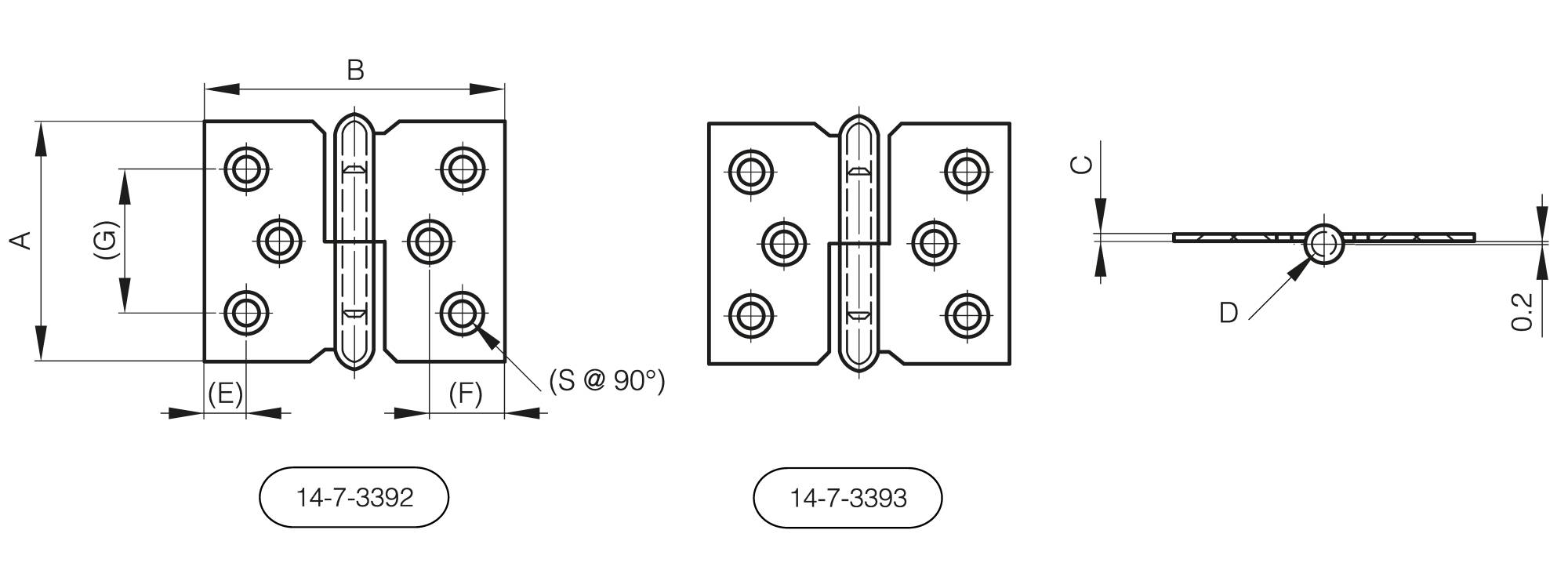

A (length)B (width)CD (pin diameter)SEF (pitch)Note
