Rectangular hinges
Nylon bushing.

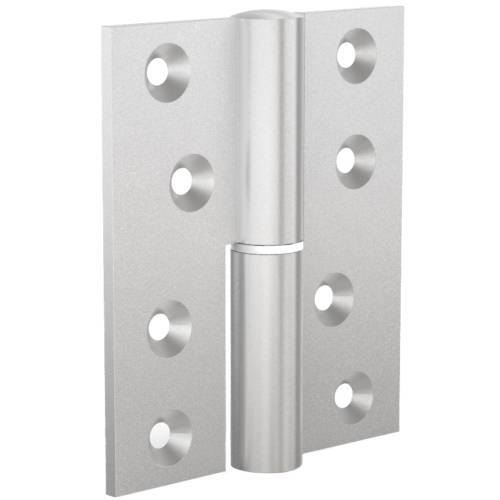

Aluminium lift-off hinges 100 x 85 mm
Zinc plated steel pin.Nylon bushing.
Quotation request
2 reference(s) available
| reference | Material | Finish | A | B | C | S | D | N | Weight (g) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-7-3626 | aluminium | anodised silver | 100 mm | 85 mm | 3.5 mm | 5.5 mm | 9 | type 1 | 99 g | ||||||||||||||||||||
Price quotation and order, to regiter or login click on Log in |
|||||||||||||||||||||||||||||
| 14-7-3627 | aluminium | anodised silver | 100 mm | 85 mm | 3.5 mm | 5.5 mm | 9 | type 2 | 99 g | ||||||||||||||||||||
Price quotation and order, to regiter or login click on Log in |
|||||||||||||||||||||||||||||

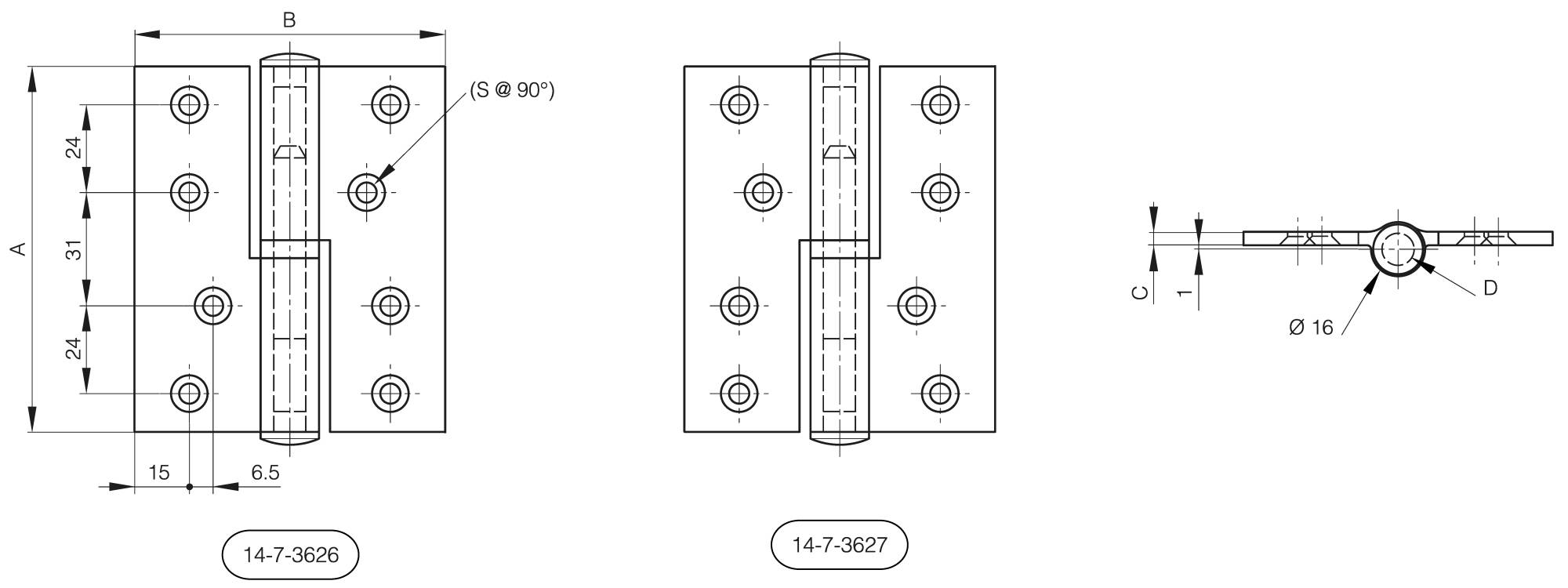

A (length)B (width)CSD (pin diameter)Note
