Hinges 60 to 100 mm long

Rectangular hinges

Hinges 60 to 100 mm long

All hinges have headed pins except 50-7-3552, 50-7-3553, 50-7-3554.

Quotation request

Part number

	Load	Stock

Material

Finish

Note

Weight (g)

Sheet	cao	Load	Stock

50-7-3560

steel

raw

60 mm

34.8 mm

1 mm

undrilled / headed pin / 5 knukles

23 g

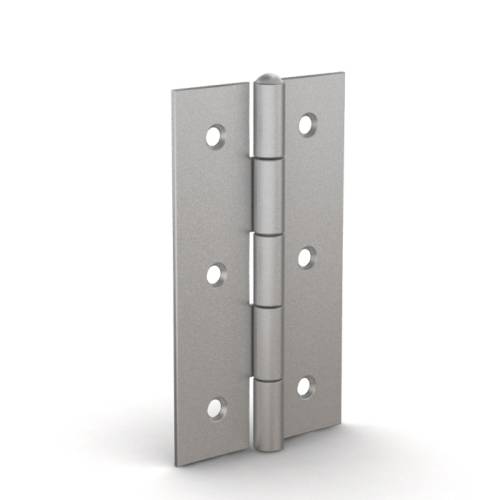

50-7-3552

steel

raw

60.5 mm

36.4 mm

1 mm

3.5

8.75 mm

44 mm

3.9 mm

drilled / 6 knukles

23 g

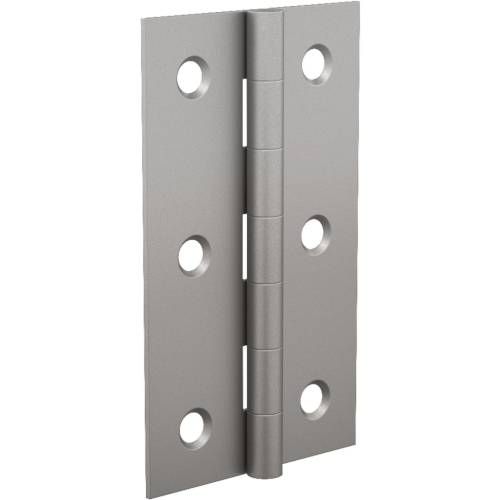

50-7-3553

steel

raw

70 mm

41.5 mm

1 mm

3.5

8.7 mm

52 mm

4.5 mm

drilled / 7 knukles

39 g

50-7-3554

steel

raw

80.5 mm

45.4 mm

1 mm

3.5

9.6 mm

59.3 mm

4.6 mm

drilled / 8 knukles

47 g

50-1-3564

steel

raw

100 mm

50 mm

1.5 mm

undrilled / headed pin / 5 knukles

92 g

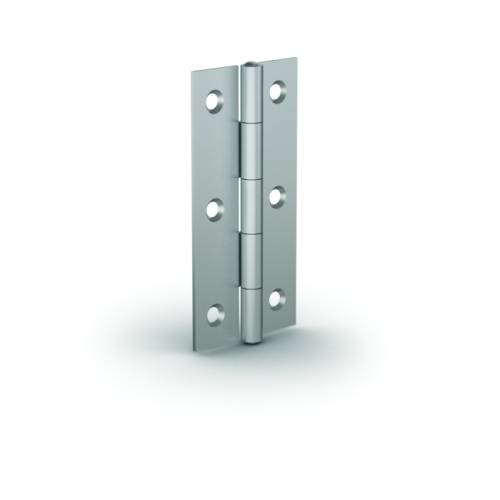

50-1-3556

steel

raw

100 mm

50 mm

1.5 mm

9.7 mm

77 mm

5.5 mm

drilled / headed pin / 5 knukles

89 g

Scroll horizontally

	Axial load	Radial load	Load with 90° angle
Tensile tests
References	Maximum load (N)	Maximum load (N)	Maximum load (N)
50-7-3554	7130	2060	2270

The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.

Test conditions and protocols
