Detent hinges
Torque is preset.
3 other versions available: free swinging, with spring or with friction mechanism.

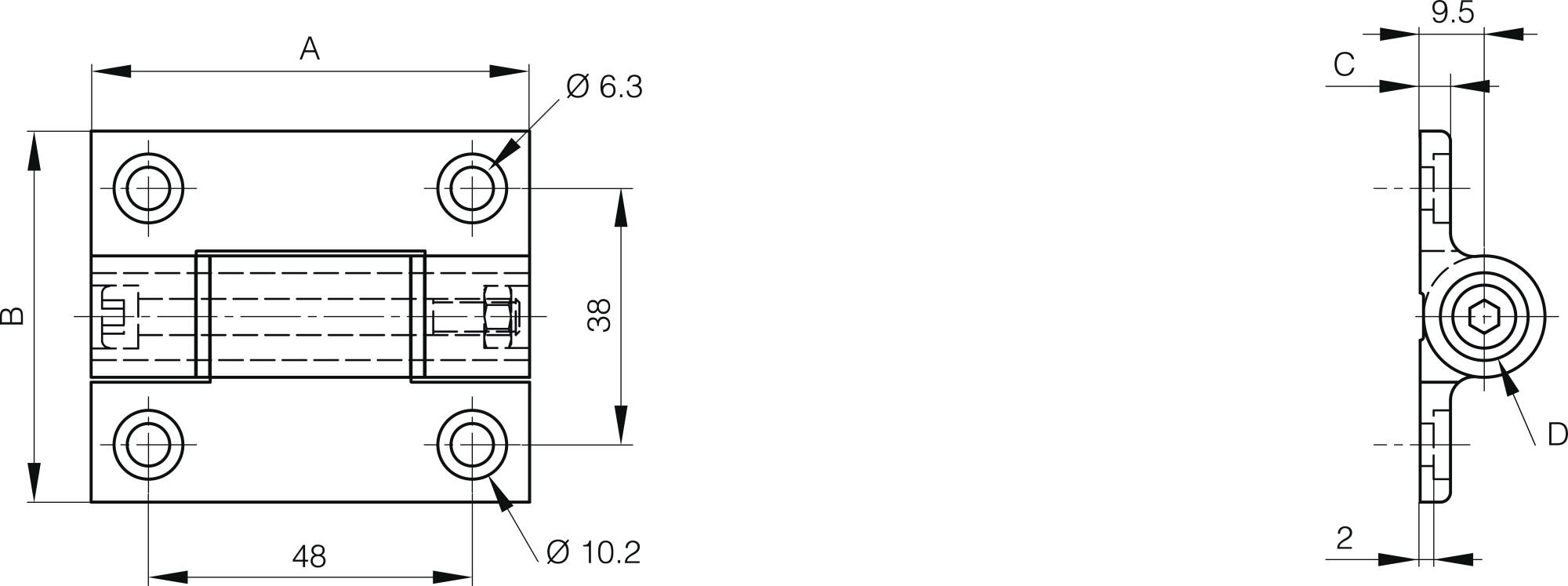

Hi-Klik™ detent hinges - large
Indented every 30°. 4 torque values.Torque is preset.
3 other versions available: free swinging, with spring or with friction mechanism.
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 72-1-4197 | 5740 | 11330 | 5880 |
| 72-1-4198 | 5740 | 11330 | 5880 |
| 72-1-4225 | 5740 | 11330 | 5880 |
| 72-1-4233 | 5740 | 11330 | 5880 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
